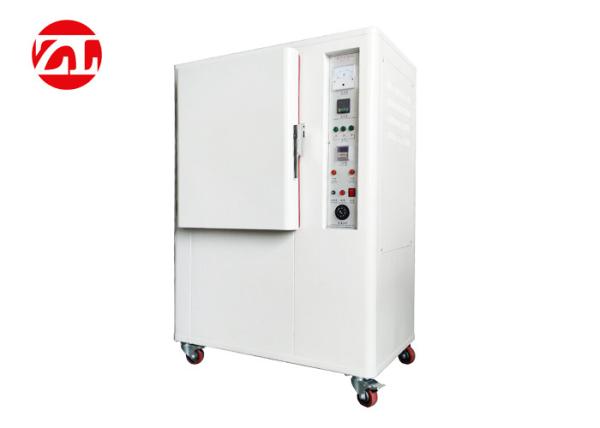

ASTM G154 UV Lamp Environment Test Machine Program Controllable

Product name : ASTM G154 UV Lamp Environment Test Machine Program Controllable

Temperature : Room temp ～ 200℃

Temperature resolution : 0.1 degree

Accuracy : ±1 degree

Timer : 0-999H、memory-type with buzzer

Control mode : Automatic calculation controller

Protection : EGO over-temperature guiding light，overload switch ammeter

Weight : 87kg

Brand Name : ZL

Model Number : ZL-6009

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : ASTM G154 UV Lamp Environment Test Machine Program Controllable is packaged within wooden case.

Contact Now

ASTM G154 UV Lamp Environment Test Machine Program Controllable
This machine promotes the deterioration of vulcanite and calculates the change rate of tensile strength and elongation. It simulates sun and heat effects using ultraviolet radiation, allowing observation of sample resistance to yellowing and discoloration. The equipment features a UV lamp (300W) for accelerated testing and can function as both an aging test machine and oven, offering multi-functional capabilities. A forced hot air circulation control system ensures uniform temperature distribution.
ZL-6009A Aging Anti-Yellow Testing Machine Documentation
Working Principle
The internal mixer operates with two rotors rotating relative to each other, feeding materials into the roll gap where they undergo squeezing and shearing. Materials cycle around the rotor, experiencing shear and friction that raises temperature, reduces viscosity, and enhances wettability. Compounding agents are sheared and broken through gaps, while rotor convex edges provide axial movement for thorough mixing. This process ensures even dispersion of compounding agents in the rubber material.
Compliance Standards
CNS-3556, JIS-K6301, ASTM-D2436, ASTM D1148, BS 5131, ASTM D573
Applicable Industries
Widely used in paint, resins, plastics, printing and packaging, aluminum, adhesives, automotive, cosmetics, metals, electronics, electroplating, medicine, and more.
Technical Parameters
Model ZL-6009A
Inside Size 40×40×45cm
Volume 91×55×100cm
Temperature Room temp ～ 200℃
Temperature Resolution 0.1 degree
Accuracy ±1 degree
Timer 0-999H, memory-type with buzzer
Control Mode Automatic calculation controller
Wheel Speed Dia.45cm, 10R.P.M. ±2R.P.M
UV Lamp UV300W
Heating Hot loop
Protection EGO over-temperature guiding light, overload switch ammeter
Material Inside SUS#304 stainless steel, outside high-level paint
Weight 87kg
Power 1∮, AC220V, 19.5AC
ASTM G154 UV Lamp Environment Test Machine Program Controllable
Frequently Asked Questions
  • How about your warranty?
    Generally, our warranty is two years. Within the warranty period, we offer technical support and replacement parts. When necessary, our engineers may provide on-site service.
  • How about the packing for machine, is it safely protected during transportation?
    Our machines are packed in standard export wooden boxes to prevent damage. We have extensive experience delivering testing machines internationally by sea and air without issues.
  • What is the order process?
    Inquiry → Quotation → Communication → Order Confirmation → Deposit Payment → Production → Testing and Debugging → Balance Payment → Packing → Delivery → Customer Receiving → After Service.
  • How to install and use the product?
    The product ships with English version operating instructions and installation videos.
